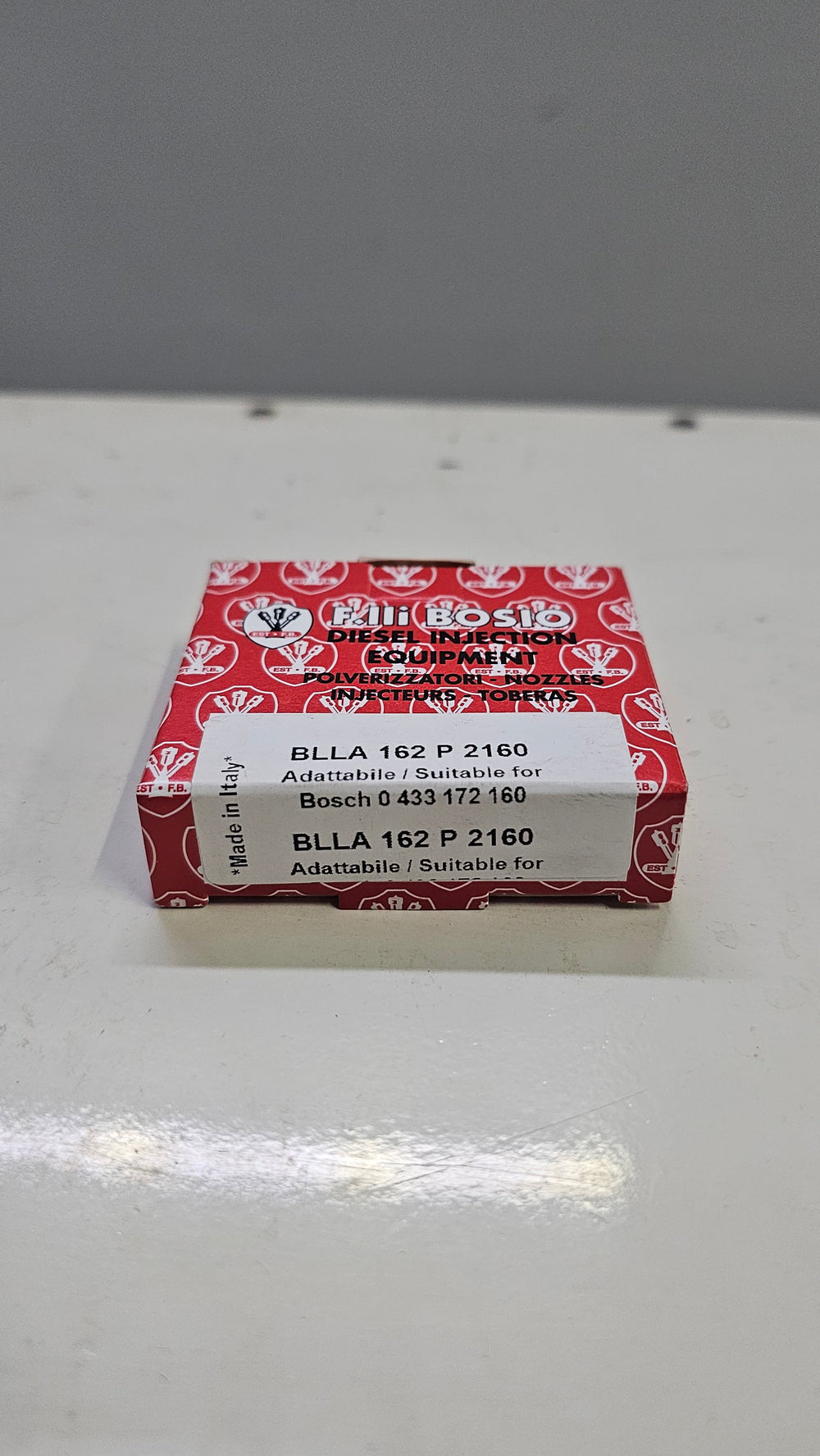

Injector nozzle BLLA 162 P 2160 - DLLA162P2160
Product description
BOSCH INJECTOR NOZZLE: DLLA162P2160 – FULL SPECIFICATION
I. Key Identification & Compatible Injectors
Nozzle (Injector Tip) P/N: DLLA162P2160
BOSCH MEC / Catalog Number: 433172160
System Manufacturer: BOSCH Common Rail Diesel Injection System.
Compatible Injector Assembly P/N(s):
- BOSCH Injector References: 0 445 110 368, 0 445 110 369, 0 445 110 646
- OEM / Vehicle Manufacturer: VW / AUDI / SEAT
Typical Applications (with HP / kW):
• VW Golf 2.0 TDI (2015–2020) – 150 HP / 110 kW
• VW Passat 2.0 TDI (2014–2019) – 150 HP / 110 kW
• VW Tiguan 2.0 TDI (2016–2021) – 150 HP / 110 kW
• Audi A3 2.0 TDI (2015–2020) – 150 HP / 110 kW
• Audi A4 2.0 TDI (2015–2020) – 150 HP / 110 kW
• SEAT Leon 2.0 TDI (2016–2020) – 150 HP / 110 kW
• SEAT Ateca 2.0 TDI (2016–2021) – 150 HP / 110 kW
II. Vehicle / Engine Application & Technical Data
Primary Vehicle Application: 2.0 L Common Rail Diesel engines in VW Group passenger cars and SUVs.
Engine Type: 2.0 L inline-4 TDI, Euro 5 / Euro 6 compliant.
Injector Technology: BOSCH Solenoid-Type Common Rail Injector.
Nozzle Type: DLLA162P2160 — precision multi-hole nozzle for high-pressure injection.
Technical Characteristics:
- Number of Holes: ~7
- Hole Diameter: ~0.160 mm (per aftermarket spec)
- Spray Angle: 162°
- Operating Pressure: 1600–1800 bar typical
- Material: High-strength, heat-treated tool steel
- Fuel Compatibility: EN 590 Diesel / Biodiesel blends up to B7
- Performance Features: Optimized for atomization, low emissions, efficient combustion, and longevity
III. Critical Technician Notes (MUST-DO)
1. Clean Installation: Clean the nozzle thoroughly (ultrasonic cleaning recommended) before fitting.
2. Sealing Components: Always replace copper washers, O-rings, and seals.
3. Injector Mounting: Follow OEM torque and alignment specifications.
4. Post‑Installation Testing: Perform leak-back and test-bench spray checks to verify correct spray pattern and absence of leaks.
5. Calibration / Coding: Use VW / Audi / Seat diagnostic tools for injector coding if required.
6. Fuel Quality Notes: Use clean, high-quality diesel; replace filters during injector service.
7. Storage & Handling: Store nozzles in a clean, dry environment; avoid mechanical damage.
8. Performance Monitoring: Observe injector performance after replacement (idle smoothness, power, smoke, fuel return flow) to catch early issues.
9. Common Fault Symptoms: Rough idle, hard cold start, reduced power, black smoke, or excessive fuel return flow.
