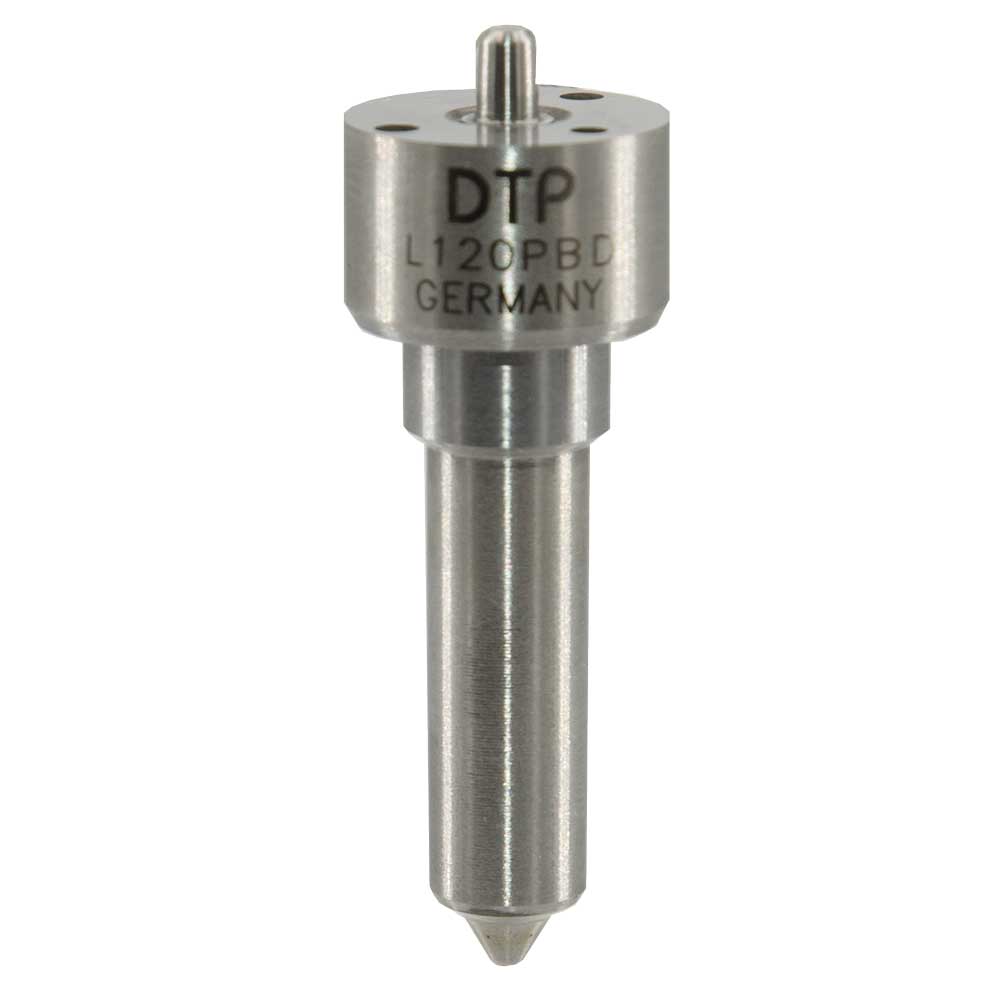

DTP 01 0120

DTP MOTORS INJECTOR NOZZLE: DTP 01 0120 - FULL SPECIFICATION

I. Key Identification & Compatible Injectors

Nozzle (Injector Tip) P/N: DTP 01 0120

Complete Injector Assembly P/N(s) (Target Application - Unconfirmed):
- Likely OEM (Renault): 77 00 106 830 / 77 01 047 847 (Common numbers for earlier Renault systems this type of nozzle replaces).
- Likely Bosch P/N: 0 432 193 695 (Example of a compatible Bosch injector for an early Renault 1.9L engine).

Manufacturer & EAN:
- Manufacturer: DTP Motorteile GmbH
- EAN: 4099969000257

II. Vehicle Application & Technical Data

Primary Vehicle Application: RENAULT Passenger Vehicles.
Models (Highly Likely): Renault Megane, Renault Scenic, Renault Clio, Renault Kangoo.
Compatible Engines (Highly Likely): 1.9L D / dTi Diesel Engines (e.g., Engine Codes: F8Q, F9Q).
Engine Technology: Indirect/Direct Diesel Injection (Older mechanical or early electronic systems, typically not Common Rail).
Material: High-speed Steel (Standard for diesel components).

III. Critical Technician Notes (MUST-DO)

1. Nozzle Testing: After fitting, the injector opening pressure MUST be tested and adjusted to the manufacturer's specification using shims. This step is MANDATORY for correct spray pattern and engine operation.
2. Cleanliness: While not as sensitive as Common Rail, the fuel system requires high cleanliness. Flush fuel lines and inspect the filter before installation.
3. Sealing Replacement: ALWAYS use a new copper sealing washer (fire ring) for the nozzle tip and, if applicable, new O-rings for the injector body to ensure proper heat transfer and sealing.
4. Component Matching: Ensure the nozzle is correctly matched to the vehicle's engine code and the original injector body to maintain the correct spray angle and injector timing.
