Diesel Centar

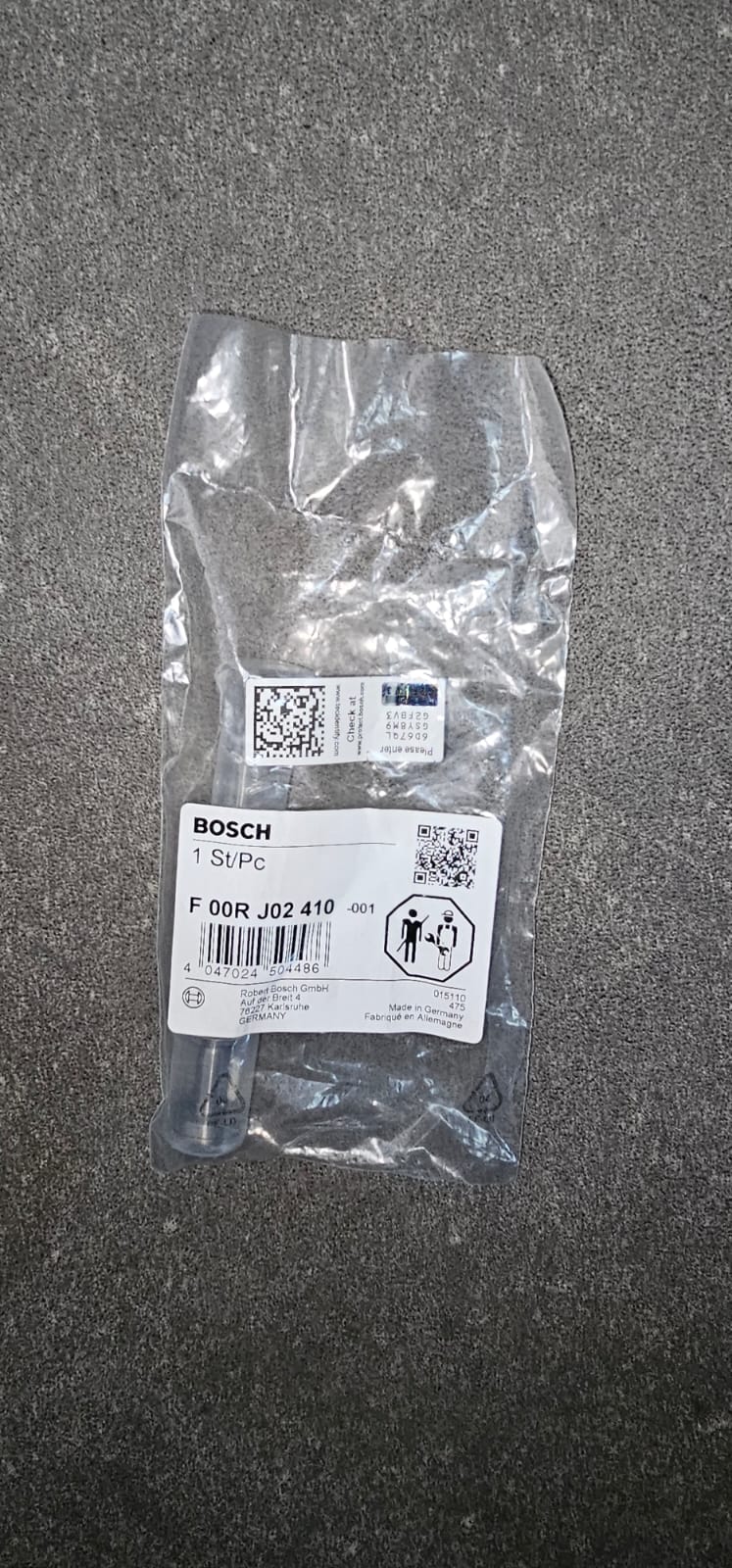

F 00R J02 410
F 00R J02 410
Couldn't load pickup availability
| Bosch Part Number | F 00R J02 410 |
| Component Type | Control Valve Assembly (Valve Set) |
| System | Bosch Common Rail Injector (Solenoid Type) |
| Target Injector PN Range | Extremely broad range of heavy-duty injectors, including: 0 445 120 179, 0 445 120 180, 0 445 120 201, 0 445 120 229, and many others (over 20 compatible PNs). |
| Primary Vehicle Use | Heavy-duty commercial applications, including MAN trucks and buses (e.g., MAN TGS, TGX, Lion's City/Coach) and other large diesel engines. |
| Key Function | The critical component for electro-hydraulic control of fuel injection—responsible for piloting, timing, and metering of all fuel events. |
| CRITICAL SERVICE 1 | Replacement demands micro-precise shimming to set the correct stack height and armature lift, crucial for flow consistency. |
| CRITICAL SERVICE 2 | Full injector reconditioning and flow testing must be performed on certified high-pressure equipment. |
| CRITICAL SERVICE 3 | Post-repair, a new IMA/QR calibration code is mandatory. This code must be saved and then written to the vehicle's ECU via a diagnostic tool. |
