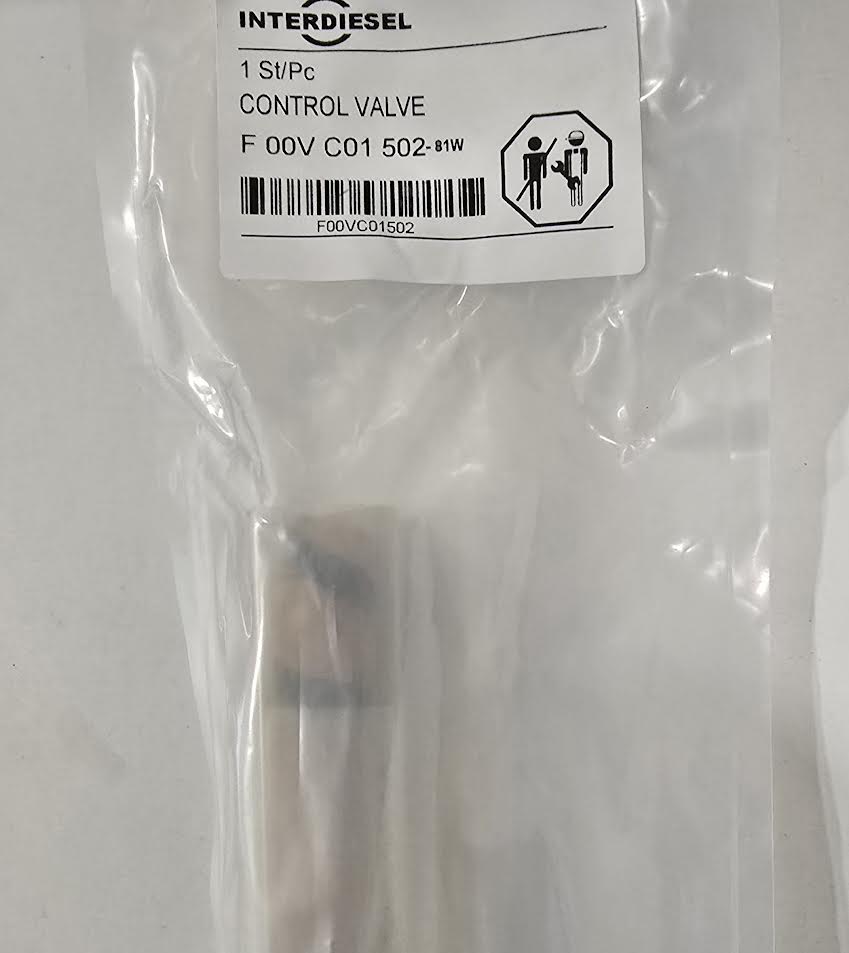

BOSCH INJECTOR CONTROL VALVE F00VC01502

BOSCH INJECTOR CONTROL VALVE – FULL SPECIFICATION

I. Key Identification & Compatible Components

Part Type: Control Valve for Common Rail Diesel Injectors
Compatible Injector References: 0 445 110 368, 0 445 110 369, 0 445 110 646, 0 445 110 647, 03L130277J, 03L130277JQ
Vehicle / Engine Compatibility: VW 2.0 TDI (diesel engines, inline-4)
Manufacturer: BOSCH
Injector Technology: Solenoid-type Common Rail Injector Control Valve
Typical OEM Applications: VW Golf, Passat, Tiguan, Jetta, Audi A3, and other 2.0 TDI vehicles

II. Vehicle / Engine Application & Technical Data

Primary Application: VW 2.0 TDI diesel engines using Bosch Common Rail injectors
Injector Type: Solenoid CR injectors
Valve Function: Regulates fuel quantity and injection timing by controlling injector actuation
Material: High-strength, heat-treated steel with precision-machined surfaces
Operating Pressure: Typically up to 1600–1800 bar (depending on CR system)
Fuel Compatibility: EN 590 Diesel / Biodiesel blends up to B7
Performance Features: Optimized fuel atomization, accurate injection timing, reduced emissions, enhanced fuel efficiency

III. Critical Technician Notes (MUST-DO)

1. Installation: Handle carefully; contamination or impact can damage the control valve or injector
2. Calibration: Perform IMA/ISA or OEM diagnostic coding after installation
3. Sealing Components: Replace O-rings and copper washers for every installation
4. Clean Installation: Maintain absolute cleanliness; even micro-contamination can cause injector failure
5. System Verification: Conduct leak-back test, rail pressure verification, and injector balance check
6. Storage & Handling: Keep in original packaging; avoid dust, moisture, and mechanical impact
7. Compatibility Notes: Only compatible with the listed injector part numbers; do not interchange
8. Remanufacture / Aftermarket Notes: Only use verified OEM or high-quality aftermarket components to ensure reliability
