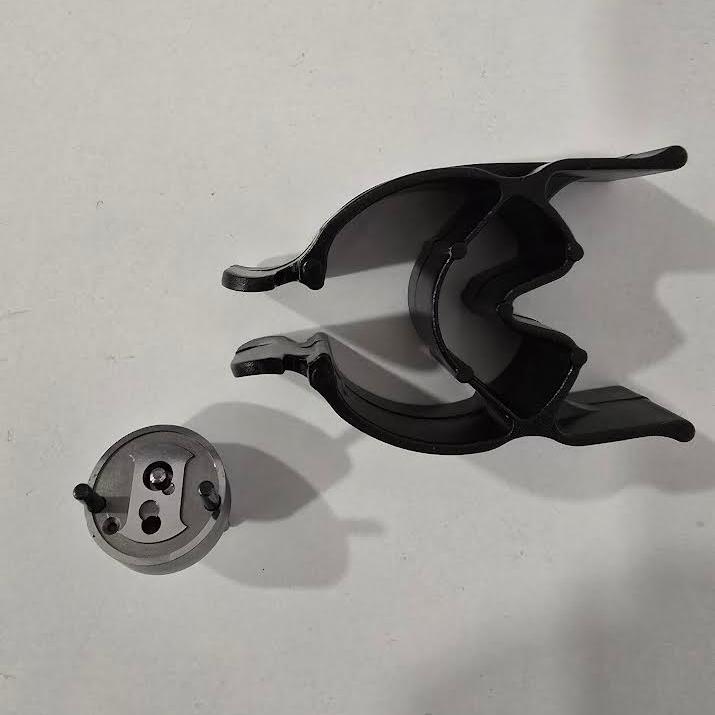

BOSCH PIEZO CONTROL VALVE F00GX17005

BOSCH PIEZO CONTROL VALVE: F00GX17005 – FULL SPECIFICATION

I. Key Identification & Compatible Components

Part Number (P/N): F00GX17005
Manufacturer: BOSCH
Type: Piezo Electric Control Valve for Common Rail Diesel Injectors
Compatible Injector Technology: BOSCH Piezo Solenoid-Type Injectors (High-Pressure CR Systems)
Typical OEM Applications: Diesel passenger cars, light commercial vehicles, and certain heavy-duty engines using BOSCH Piezo injectors.
Compatible Injectors: Bosch Piezo injector series 0445116xxx and 0445117xxx

II. Vehicle / Engine Application & Technical Data

Primary Application: High-pressure Piezo Common Rail Diesel Injectors
Engine Type: Inline-4, Inline-6 diesel engines with Piezo-controlled injectors
Valve Function: Controls precise fuel injection timing and quantity by regulating piezo actuator movement inside the injector
Material: High-strength, heat-treated steel and precision-machined components
Operating Pressure: Up to 2000 bar (depending on CR system)
Fuel Compatibility: EN 590 Diesel / Biodiesel blends up to B7
Performance Features: Ensures accurate, high-speed injector actuation, optimized atomization, improved combustion, reduced emissions, and enhanced fuel efficiency
Weight: ~10 g (Bascolin specification)
Common Applications: Passenger cars, light commercial vehicles, high-precision diesel engines requiring Piezo injectors

III. Service Notes, Risks & Technician Guidance

1. Installation: Handle with extreme care; Piezo valves are highly sensitive to impact, dirt, and contamination.
2. Calibration: Must be coded and calibrated using BOSCH OEM diagnostic tools after installation.
3. Sealing Components: Always replace associated O-rings and sealing washers.
4. Clean Installation: Maintain absolute cleanliness; even micro-contamination can cause malfunction.
5. System Verification: Perform injector function test, system leak-back check, and rail pressure verification.
6. Storage & Handling: Store in original packaging; avoid vibration, impact, and exposure to moisture or dust.
7. Maintenance Notes: Only compatible with specific Piezo injectors (0445116 / 117 series); do not interchange with solenoid injectors.
8. Remanufacture / Repair Notes: Remanufactured or aftermarket versions exist, but quality may vary. Specialized tools and knowledge are required for repair.
9. Technical Limits: Publicly available specifications do not include exact opening pressure, flow curves, or electrical parameters — these are controlled by Bosch and OEM service documentation.
10. Safety Notes: Mishandling may lead to injector failure or poor engine performance; follow OEM guidelines strictly.
